Name: 50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12
Brand: Gracias
Price: 1 USD

Brand Name : Gracias

Model Number : Ridge cap

Certification : ISO,CE

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 60sets per month

Delivery Time : 45 work days

Packaging Details : as customer's request

Voltage : 380V 50Hz 3phases

Condition : New

Tile type : Colored Steel,Galvanized steel (GL)

Use : Produce Ridge Cap tile

Warranty : 1 Year

Thickness : 0.3-0.8mm

After-sales service provided : Video technical support,Online support

Control system : PLC System

Contact Now

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12

Product Description:

Model number	ridge cap roll forming machine
Rolled material	0.3-0.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1100mm
Feeding width	1250mm
Forming steps	11 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	60mm
Main motor power	4 kw
Pump power	3 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic Syst

Detail Show:

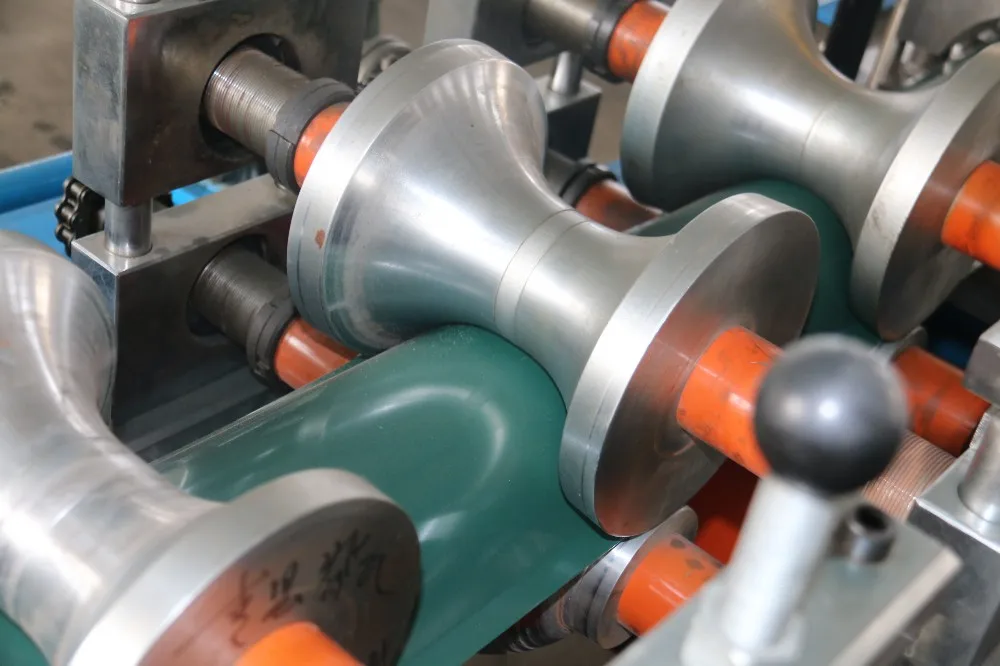

1. main roll machine:

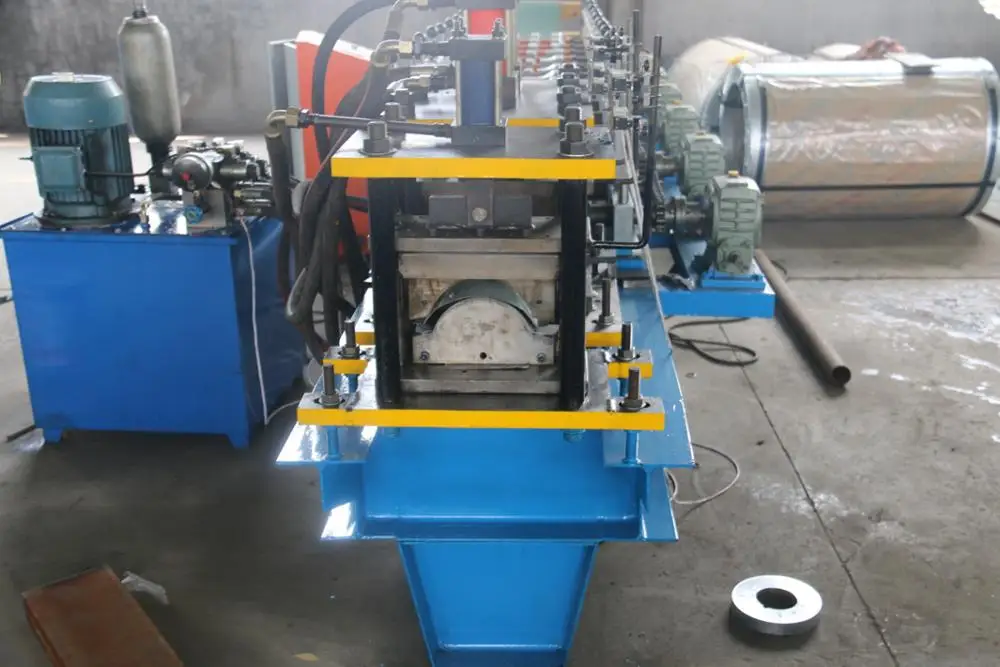

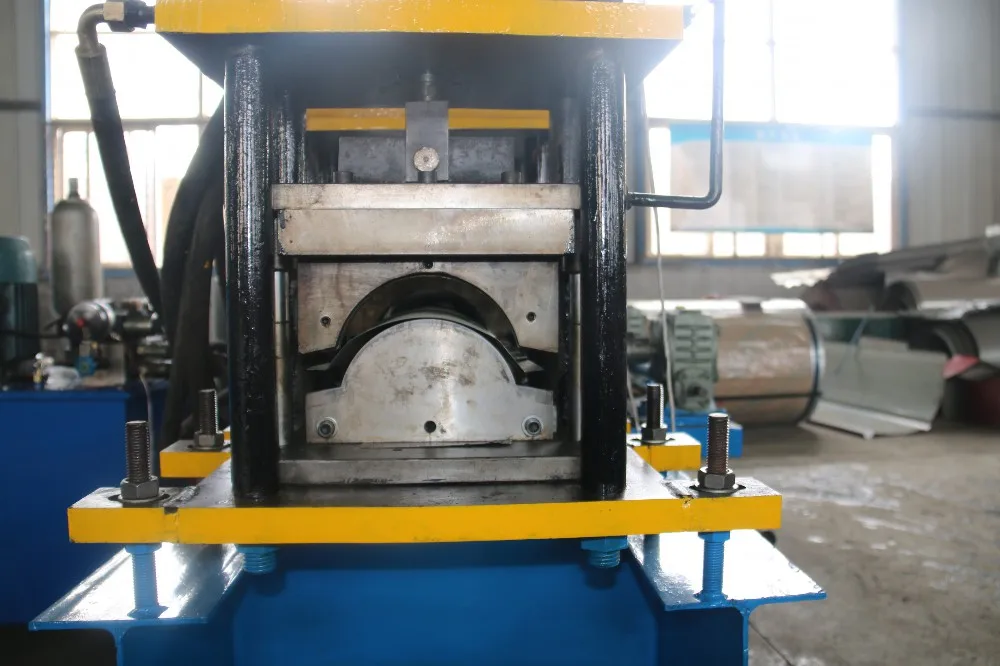

2. cutting system:

3. step-formed mechanism:(hydraulic)

4. decoiler and feeding:

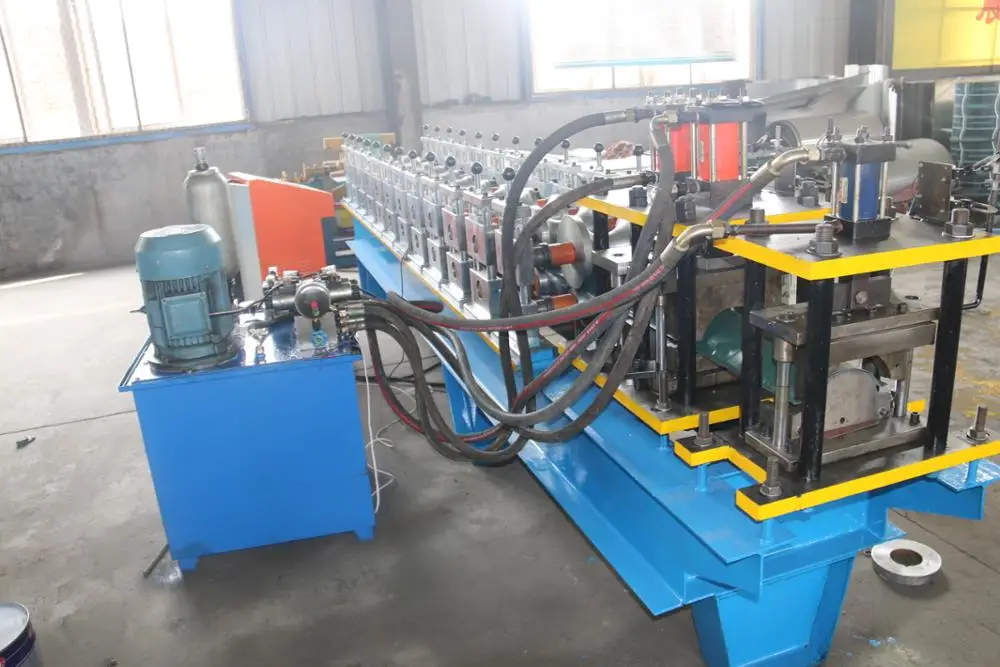

5. PLC control box and hydraulic pump:
